KN20S 36V 250W/350W Electric Ebike Conversion Kits
Smart E-bike wheel, just take 5 minutes to convert a normal bike into an E-bike

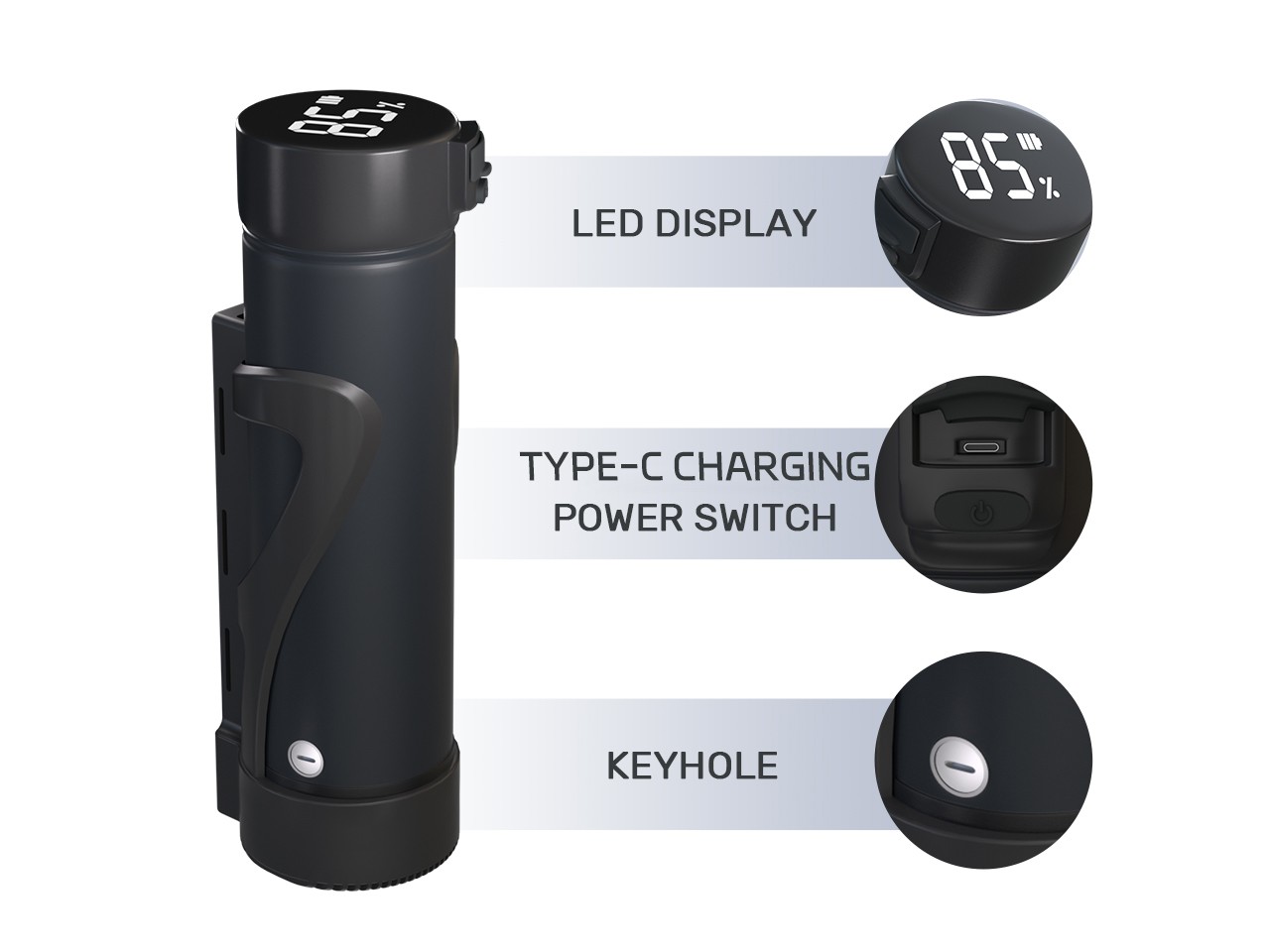

Beautiful bottle battery design/Assist range 60KM/Optional bluetooth display with thumb throttle/App control/Lost bike tracking/Smart assist system
*45-55 days Delivery Time by Sea.
*Including all taxes
*MOQ :1 Set
€1020
- €1096
Color
Size
16"
20"
24"
26"
27.5"
700C(28.5")
29"
Model
KN20S 250W Front
KN20S 250W Rear
KN20S 350W Front
KN20S 350W Rear
Quantity
Product details
Product Specifications
- Model KN20S
- Battery Capacity 36V5.8Ah
- Cell Quantity 20 cells
- Charging time 3H
- Battery Type 18650 power lithium ion battery
- Charger AC110V - AC220V,DC42V 2A
- Assist Range 60km
(The assist range is under conditions: 60kg weight rider, ouside temperature 25℃,no wind, 50% assist level under manual mode, tires with enough air pressure, riding on flat level road)
- Top Speed 32km/h
- Wheel size 16" / 20" / 24" / 26" / 27.5" / 700c/ 29"
- Rated Power 250W/350W
- Motor Structure Gear drive
- Motor Efficiency >80%
- Max Torque 30N.m
- Wireless Connection Bluetooth 5.0 (Allows the controller to connect to multiple devices at the same time)
- Charge Socket Type C
- Net weight (including rim&tire) 9kg
- Package 71*71*22cm

INSTALLATION REQUIREMENTS
